Rockford Fosgate 1,800 Watt All-In-One Audio Kit for Select 2024+ Jeep Wrangler JL

TUNING GUIDE

The Stage-3 Jeep audio kits were developed to take your 4×4 adventure to the next level. This 1800 watt plug and play audio kit delivers high output performance; a Jeep specific tune to ensure an epic listening experience as well as a straightforward installation. The system is designed and engineered to match and compliment your factory interior and was built Element Ready™ ensuring lasting performance no matter the terrain.

Performance Sound: With a total of 1800 watts, this audio kit is equipped with one 12" subwoofer, front 6.5" coaxial speakers, front 1”inch tweeters, and both a 1000-watt and an 800-watt amplifier that are pre-tuned. The kit also features a Digital Signal Processor with a specific Jeep tune, all to ensure the best-in-class listening experience

Element Ready™: Purpose built for the off-road environment, Rockford’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.

Bass Control: Equipped with a pre-installed bass level controller, you now have precise control over the amount of bass output, allowing you to tailor your audio experience to your exact preferences.

RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.

WHERE SOUND MEETS ADVENTURE

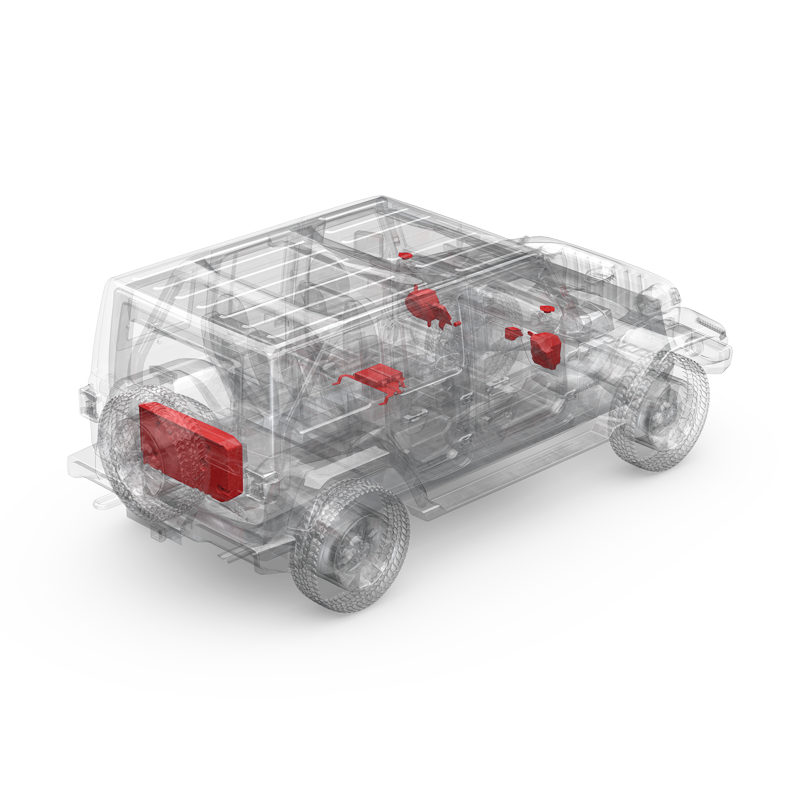

The Jeep Wrangler Stage 3 is an all-in-one 1,800 Watt high-performance audio system that’s 4x louder than the base audio and nearly 2x louder than the premium audio system. It stands apart from the competition with its fully integrated Digital Signal Processor tuned specifically for Jeep Wrangler by Rockford Fosgate engineers using a custom designed 6-microphone array.  This system retains the existing overhead soundbar.

FEATURES AT A GLANCE

• High output performance
• Up to 4x louder than base audio system
• Nearly 2x louder than premium audio system
• Plug and Play design for easy installation
• Direct bolt into vehicle using OEM mounting holes
• T-harness integration eliminates cutting or splicing wires
• Integrated OEM style enclosures w/ factory connectors
• Minimal cutting (for models that require 12v accessory relocation only)
• Audio integration into OEM CAN-bus system
• DSP recognition with auto-loading Jeep Wrangler specific tune

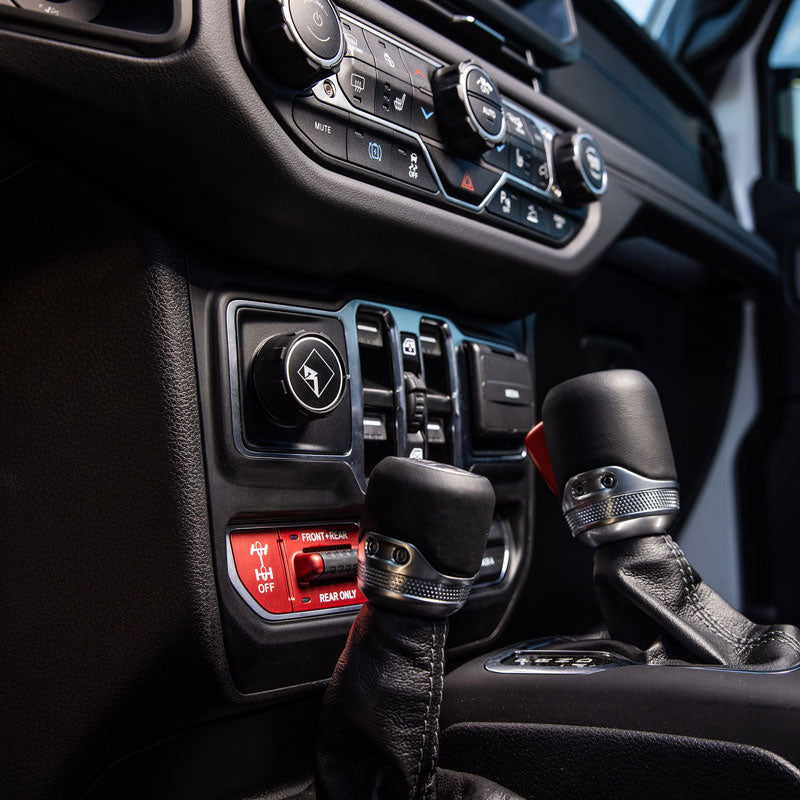

• Custom bass level control matches OEM dash and controls
• Element Ready™ enclosures designed to withstand heat, water, and UV rays
• Thermal shock and vibration resistant enclosures

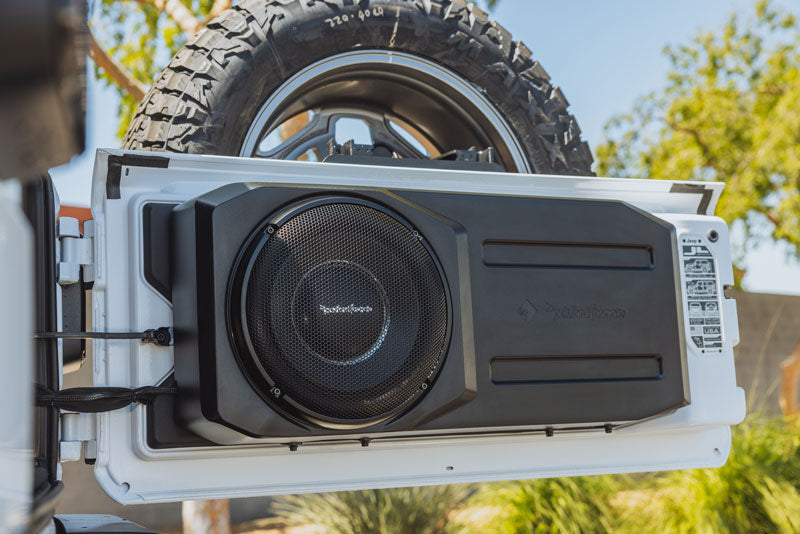

• Slim subwoofer in sealed enclosure retains cargo space
• Durable PE (Poly Ethylene) material with friction welded seams
• Custom Rockford Fosgate duck
• 2-Year Warranty

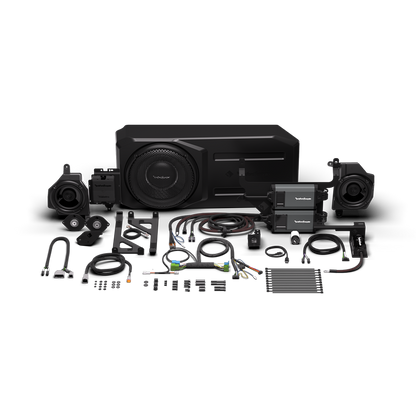

Components:

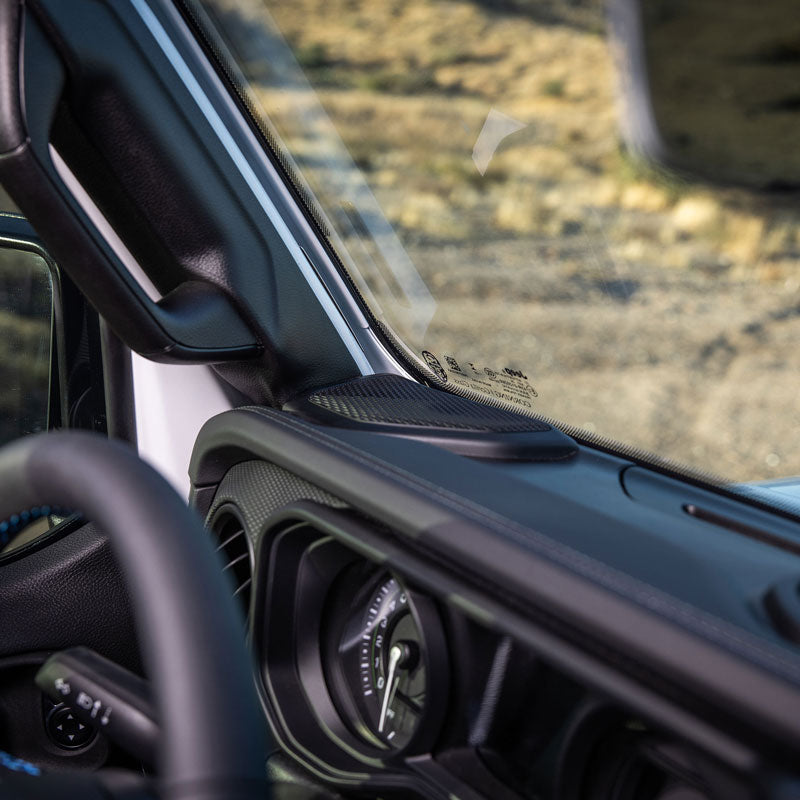

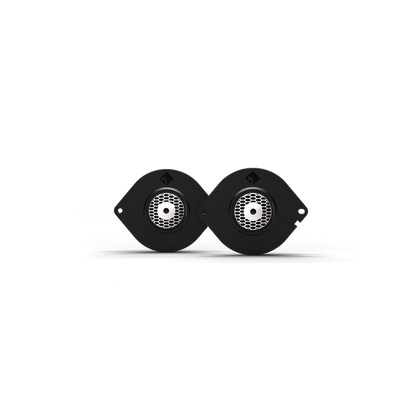

(2) M2-TS M2 1” Dash Tweeters + Bezels

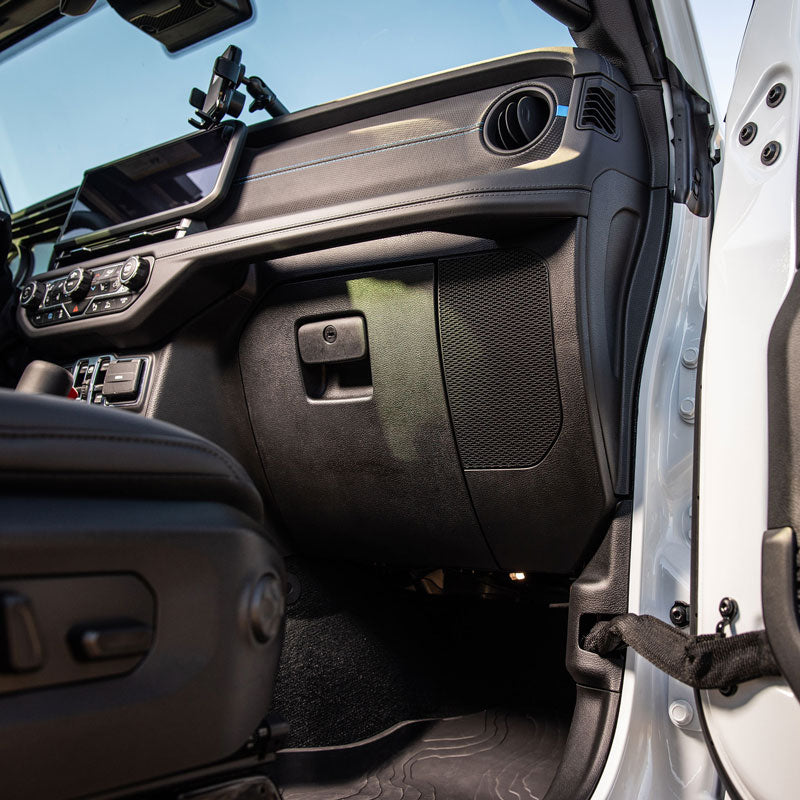

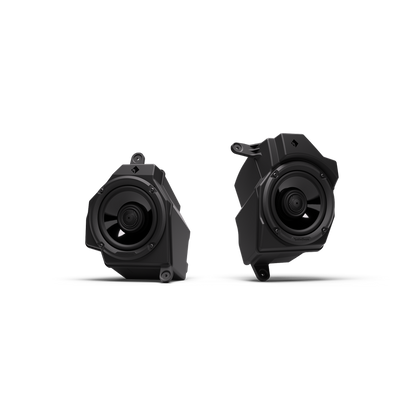

(2) TMS65 6.5” Front Speakers + Enclosures

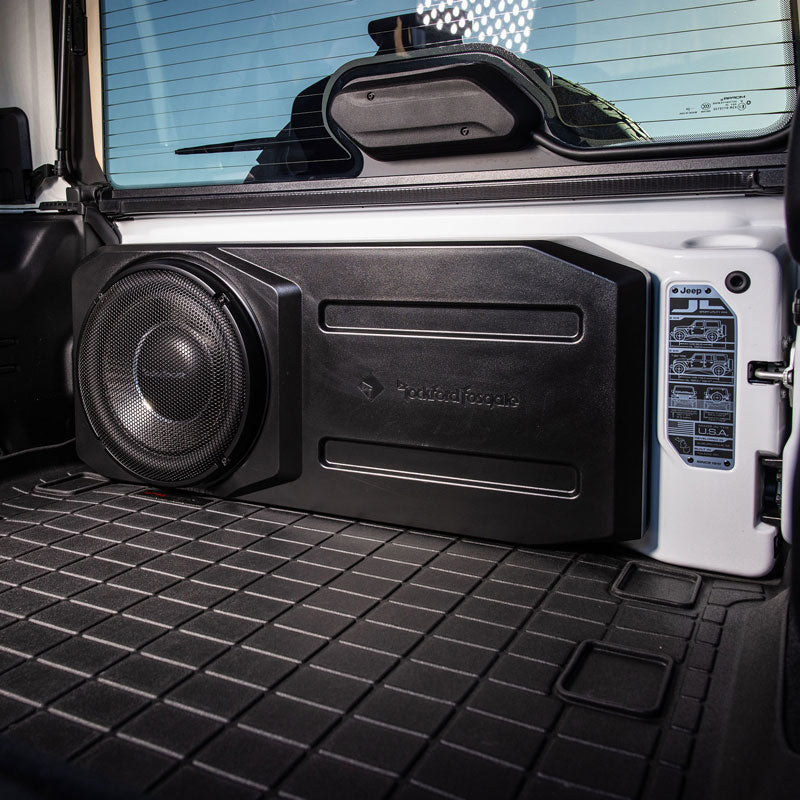

(1) T1S2-12 12” Subwoofer + Enclosure
(1) DSP + Jeep Specific Tune
(1) M5-800X4 800 Watt Amp + Jeep Specific Tune
(1) M5-1000X1 1,000 Watt Amp + Jeep Specific Tune
(1) PLC2 Bass Level Control + Custom Knob

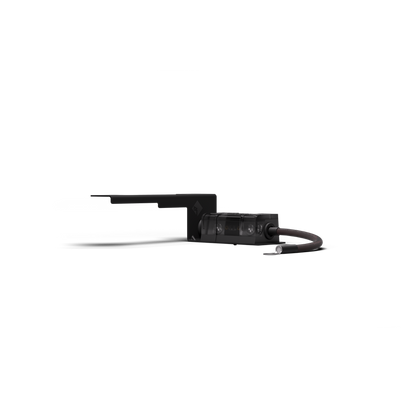

(1) Complete Wiring Kit + Fuse block

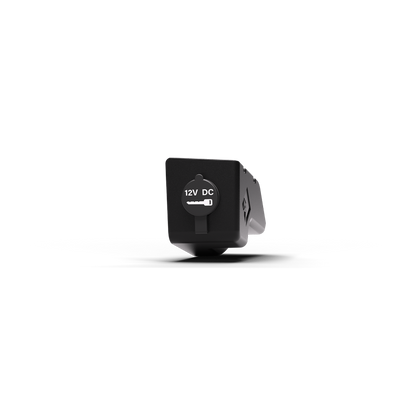

(1) 12V Relocation Kit
(1) Rockford Fosgate Duck

Installation:
• (6~8) Hours Typical

Specifications:

• Total Power: 1,800 Watts
• Front Speakers: (2) M2-TS, (2) TMS65

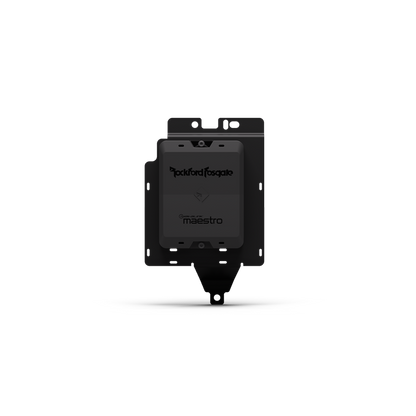

• Digital Sound Processor: (1) DSR1J (Maestro Jeep Programmed)
• Subwoofers: (1) T1S2-12

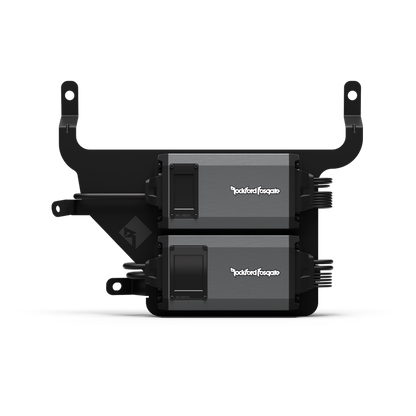

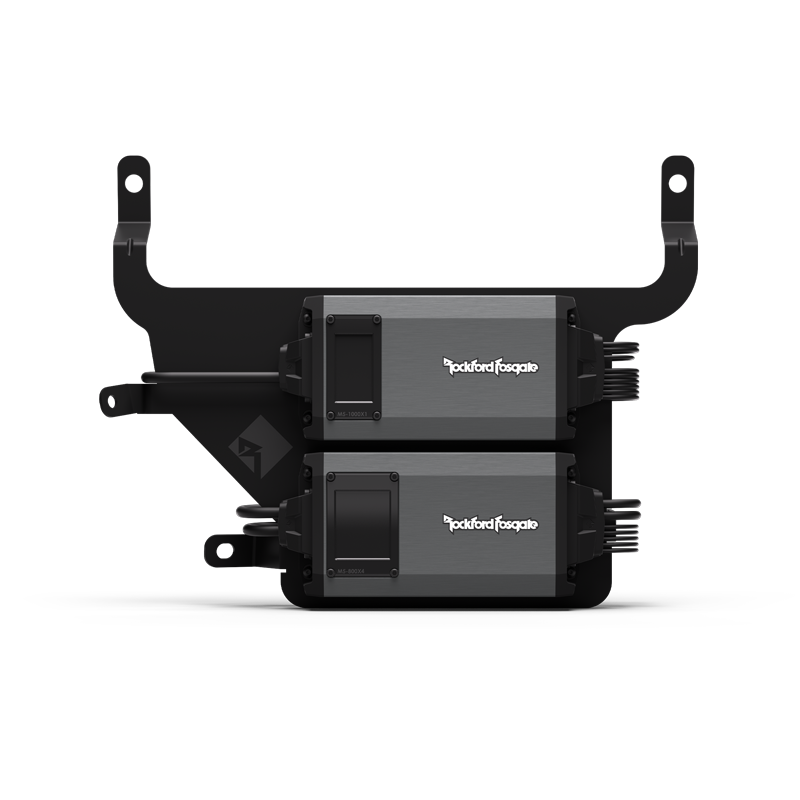

• Amplifiers: (1) M5-800X4, (1) M5-1000X1
• Fuse Size: 150 ANL

Accessory Pack
1130-76551-01:
(1) ABS Drill Template for Jeep
(3) Flat Washer M4-0.7, 9mm OD, 1mm TH
(20) Nylon Cable Tie 0.17 x 8 in.
(3) Stamped Clip
(1) 12V Socket Removal Tool for Jeep Wrangler
(1) Hole Saw with Arbor, 20mm Diameter
(3) Large Screw, M4x0.7, x 8mm
(3) Thread Form Screw, 1/4-14, 0.75 in L, Hex, 0.375
(1) Machine Screw, M6x1.0, 12mm, Hex (DSP on 24+)
(1) Drill Bit, 4.76mm Diameter, 89mm L
(1) Drill Bit, 13 mm (sub bracket)

1130-79148-01 (Sub):
(2) Short Spacer
(2) Long Spacer
(1) Subwoofer Ext. Harness 2 Conductor
(2) Machine Screw M6x1.0, 40mm L, HEX, Black
(4) Machine Screw M6x1.0, 18mm L, HEX, Black
