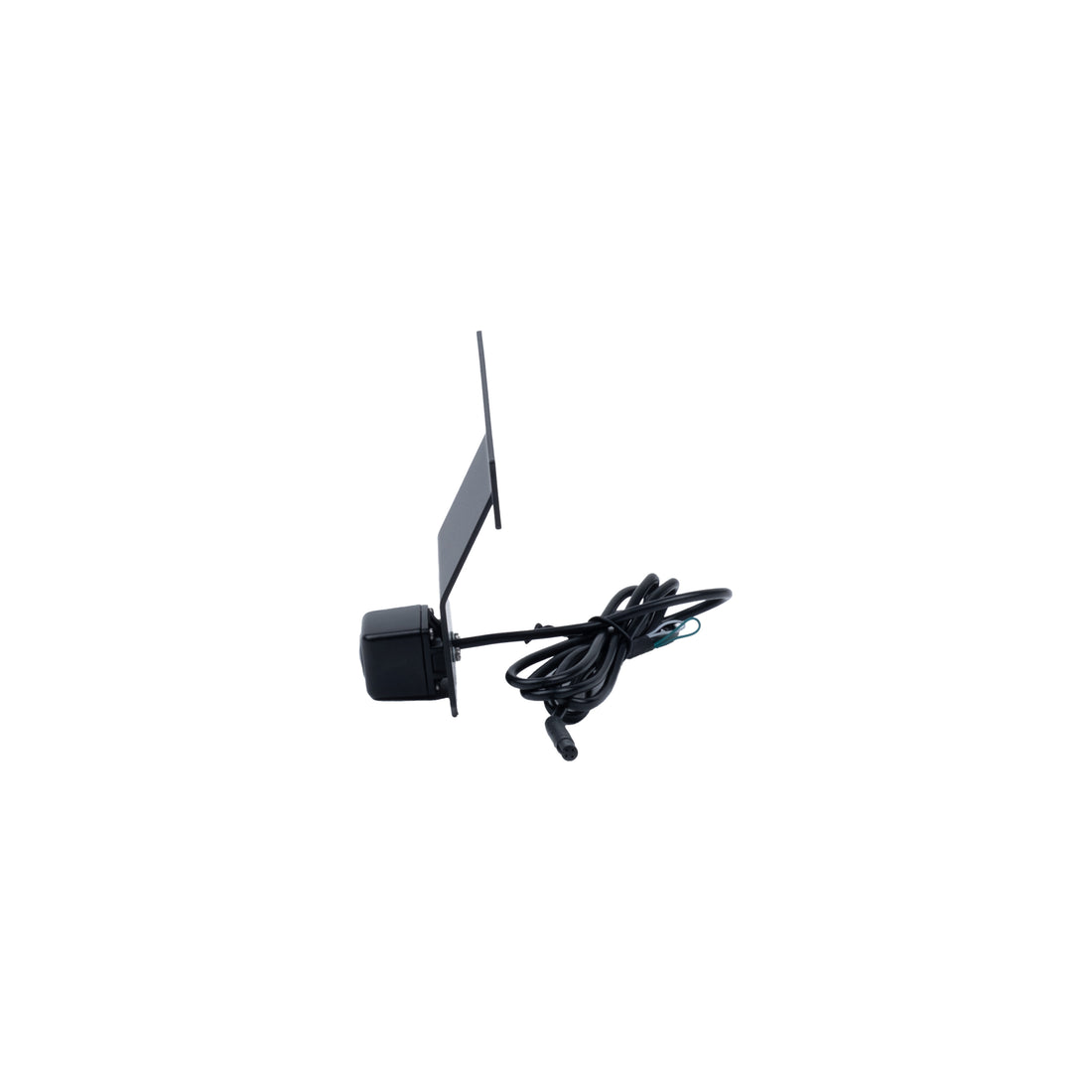

This installation guide is intended to be used to assist you during the installation of your Bantam Overland Front Camera Mount!
Installation Video
Coming Soon!Tools Needed:
- 9/32 inch socket (or 7mm socket)
- Ratchet wrench (Manual or powered)
- Panel removal tool (Plastic preferred)
- Side cutter
- Zip Ties
- Flash light or work light
Step 1
Remove the front grille:
- Open the hood and secure with hood prop.
- Remove the six plastic retainers from the top of the grille. We recommend a panel removal tool or small flat head screws driver to release the retainers.
- Remove the grille by grabbing the bottom and pulling towards you to release the retaining clips.
- Disconnect the wire connections to your factory turn signals by depressing the tabs.
Step 2
Installing the camera mount:
- Place the front camera mount on the radiator support cross member.
- Line up the mounting holes in the camera mount with the holes in the upper grille support with the camera facing forward.
- Secure the mount with the provided hardware:
- Place a split washer on each bolt.
- Place a flat washer on each bolt.
- Insert the bolt assembly through the front camera mount, thorough the upper grille support.
- Place a second flat washer over the bolt and secure with the provided nut.
- Leave the nut slightly loose for now so that you can align the camera in the grille opening.
Step 3
Routing and connecting the wiring harness:
- Connect the RCA connections from the camera extension wire to the camera.
- We recommend securing with tape.
- Route the wires along the grille support towards the passenger side of the Jeep.
- Continue running the wire backwards towards the firewall and through the firewall grommet into the cab of the Jeep.
- Continue running the wires to the back of the radio.
- Once you have verified that your wire has reached the radio, secure the harness with zip ties as needed.
Step 4
Connect the camera to your Sony bundle:
You will need to remove the head unit for this step.
- Connect the camera wire RCA to the connection labeled "Camera In 1."
- Connect the bullet connector for power and ground:
- Connect the black wire to black wire from the radio bundle.
- Connect the red wire to the red wire from the radio bundle.
Step 5
Test functionality:
- Test functionality of the camera and make any adjustments to camera mount to optimize camera view.
- The bracket can be bent slightly to adjust vertical field of view.
- The bracket can be slide left & right to adjust horizontal field of view.
- Once you are happy with the placement and fitment within the grille, fully tighten the mounting hardware.
Step 6
Re-install the front grille:
- Place the grille back on the front and connect your factory turn signal harnesses.
- Place the grille back into position and push the bottom in the secure the retainers.
- Replace the six plastic retainers along the top of the grille.
- Close and secure the hood.
